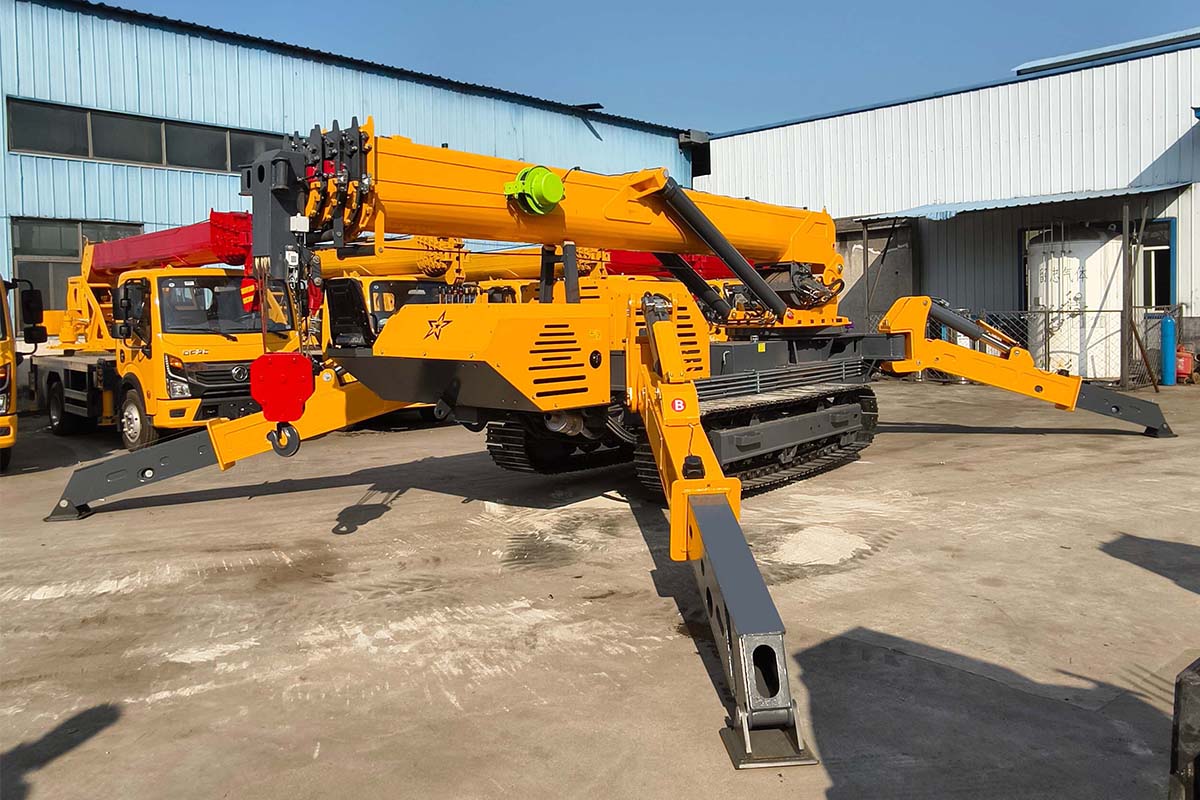

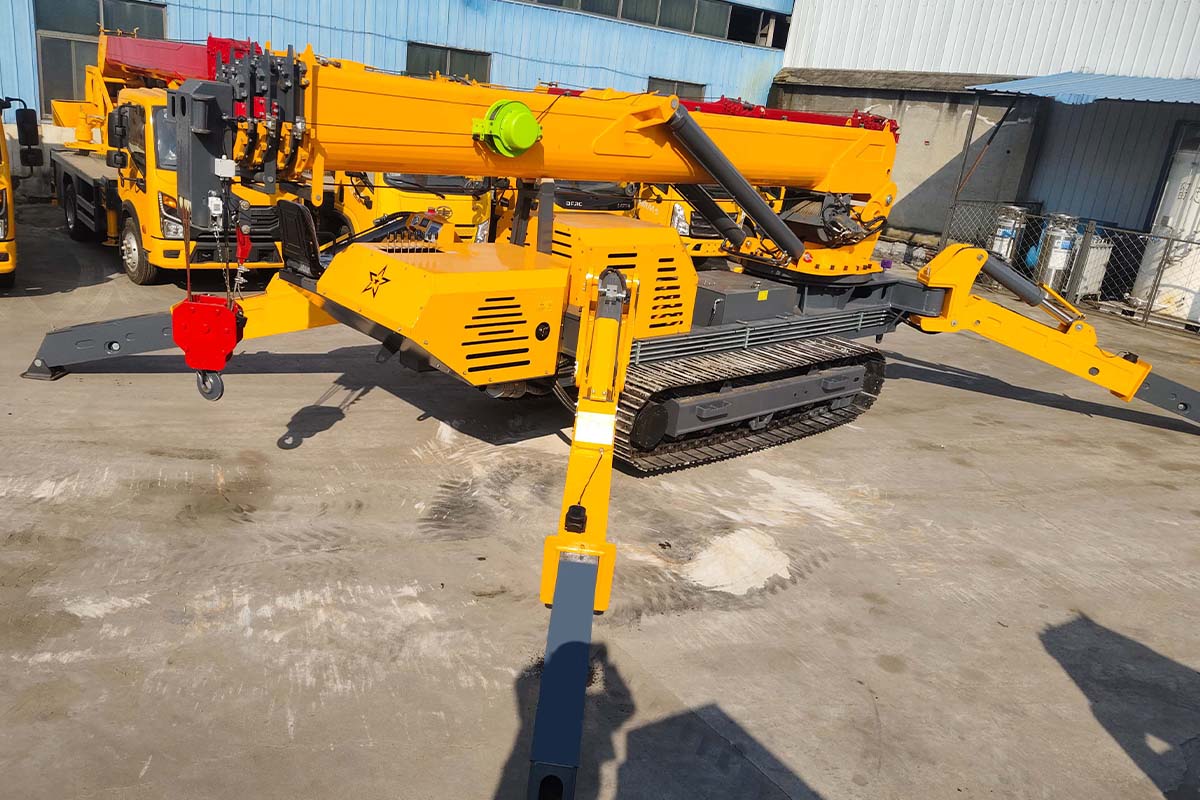

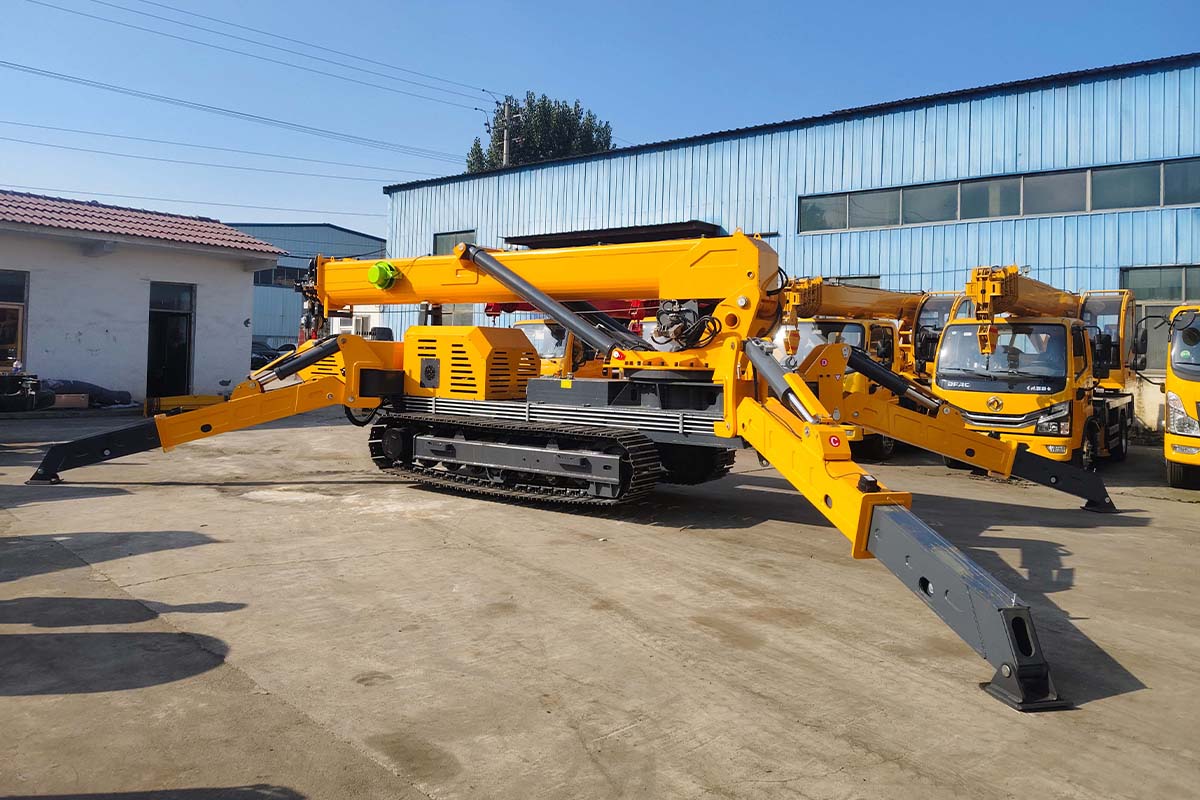

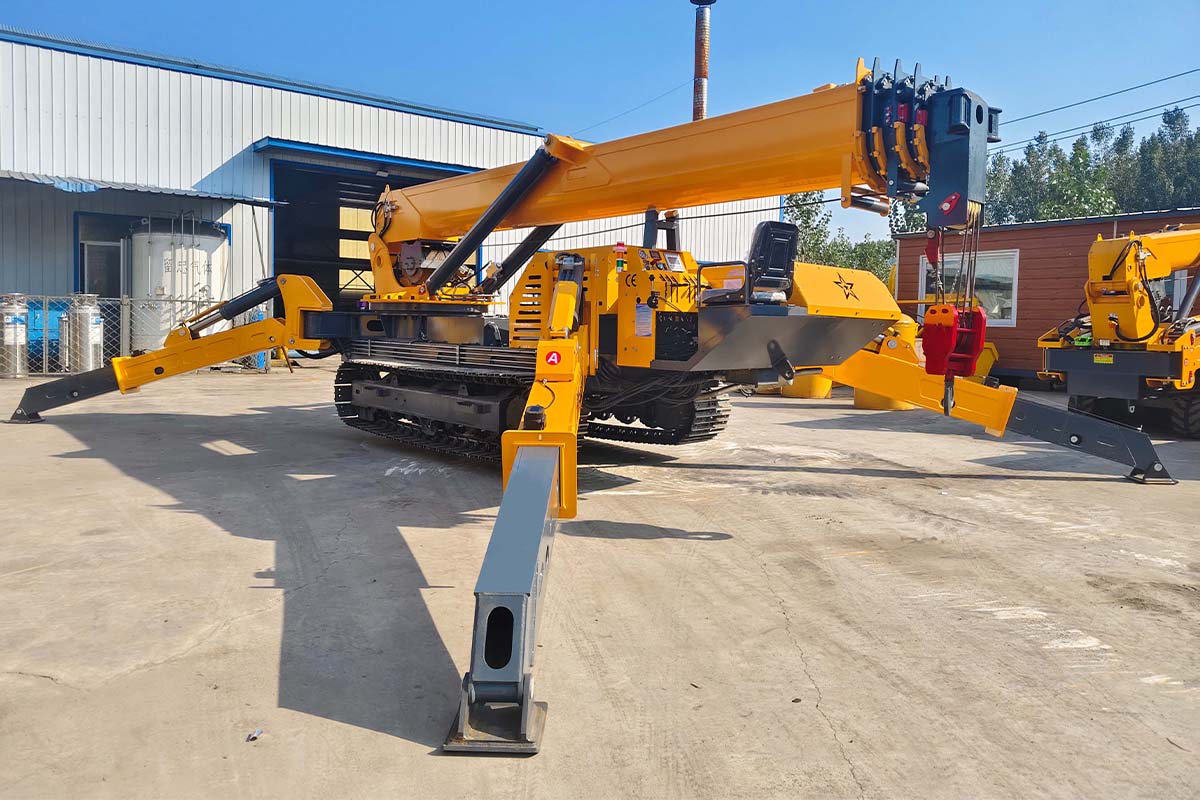

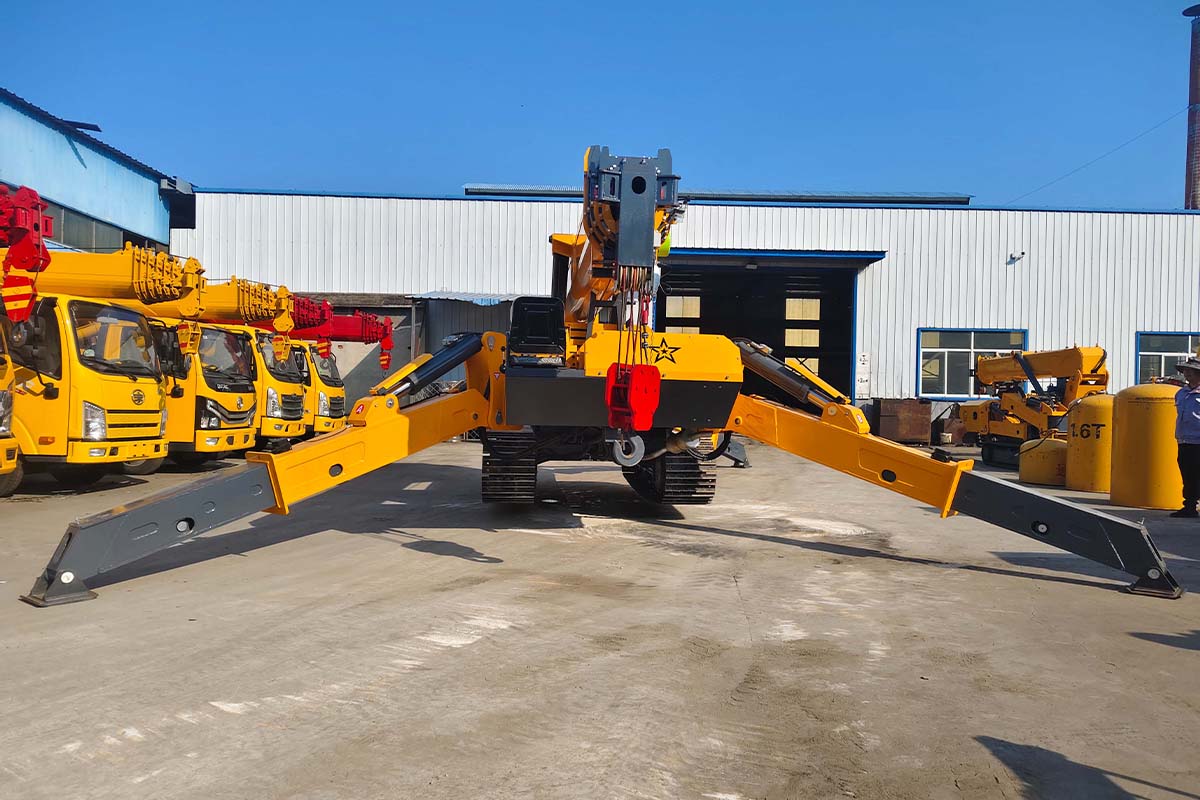

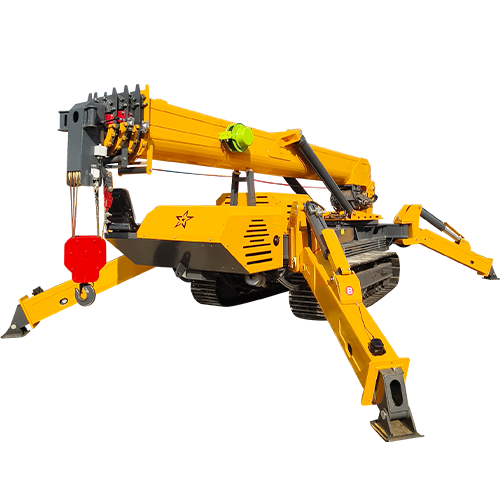

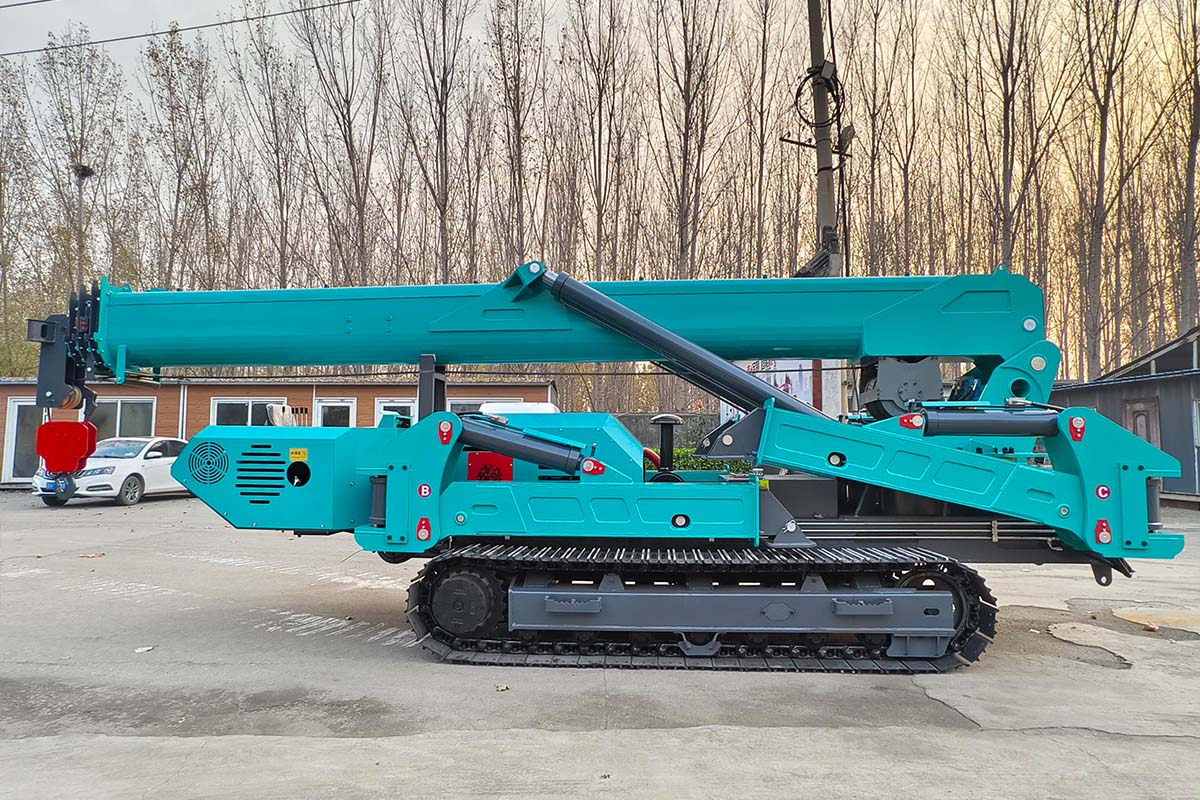

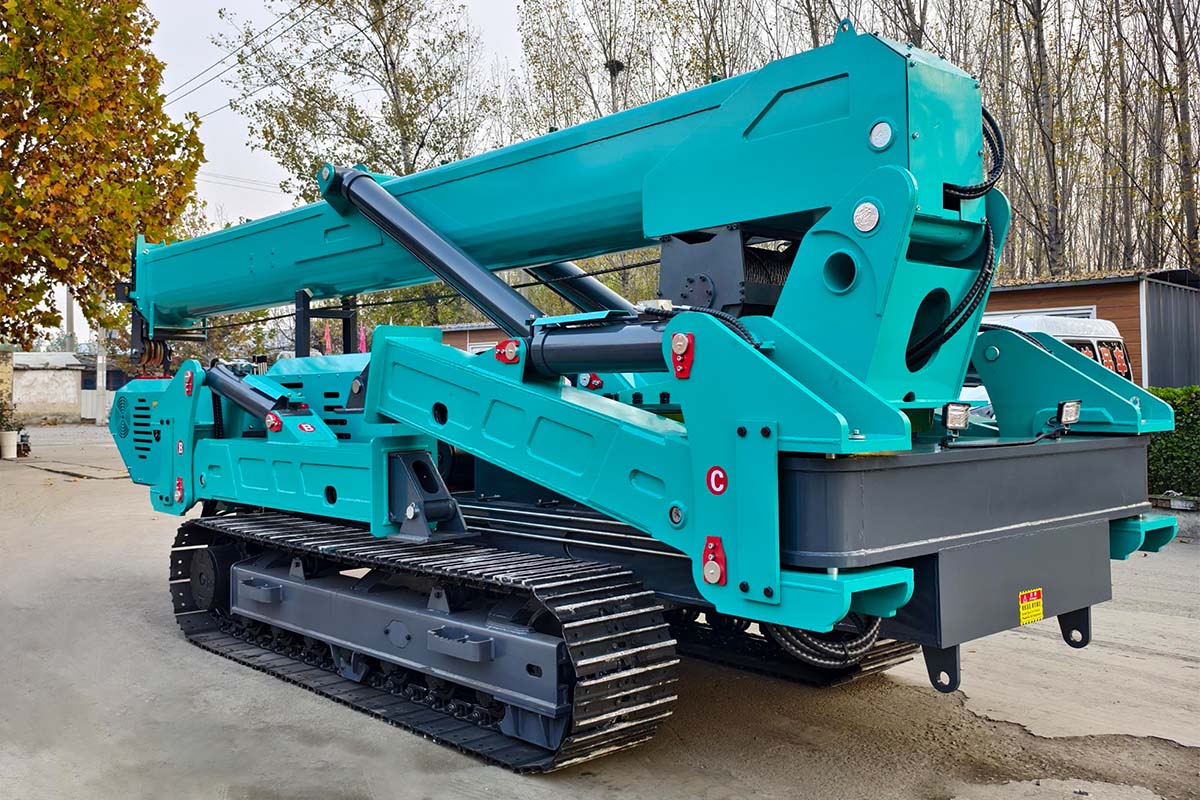

Bless Spider Crane 16T

Maximum Lifting Capacity: 16 Ton

Maximum Working Radius: 25 m × 0.5 Ton

Maximum Lifting Height: 25 m

Product Introduce

Spider Crane 16T
Model	RICHYD16T-K5
Capacity	16T * 2.3m
Maximum Working Radius	25m * 0.5t
Maximum Lifting Height	25m
Winch System	Hook Lifting Speed	12m/min (4-part line)
Boom System	Boom Type	Full automatic 5section U-shape structure
Boom System	Telescopic Arm Length	6.5m - 25m
Boom Angle / Time	0-80°/24.5sec
Rotation Angle / Speed	0-360° (Continuous) / 2.1rpm
Travel System	Travel Mode	Hydraulic motor drive
	Travel Speed	0-2.5km/h
	Ground Pressure	49.0Kpa（0.50kgf/cm²）
	Climbing Ability	35°
Electric Motor	Model	Three-phase AC asynchronous motor
	Working Voltage	380V（HZ50）
	Power	15KW
	Model / Power	4110/98kw
	Starting Method	Electric start
	System Voltage	24V
Standard Configuration	Diesel engine and electric motor (dual power)
Vehicle Dimensions	8000mm x 2150mm x 2500mm
Weight	16T

After-sale Service

Comprehensive Quality Guarantee:
We offer a 1-year warranty post-installation or 18 months after shipment (whichever comes first), ensuring reliable performance and your peace of mind.
24/7 Customer Support:
Our dedicated team provides 24/7 support, guaranteeing to resolve all technical issues within 24 hours for minimal downtime and smooth operations.
Regular Follow-Up and Maintenance Advice:
We perform regular check-ins via phone or remote monitoring to proactively maintain your machinery, ensuring long-term safety, efficiency, and reliability.
End-to-End Logistics Support:
We handle customs clearance, shipping, insurance, taxes, and documentation — so you can focus on business while we manage logistics smoothly.
