Maximum working height：9.8m/11.8m/13.8m/15.8m
Maximum platform height：7.8m/9.8m/11.8m/13.8m
Safe working load：227kg/230kg/320kg/450kg
| Product Parameters | |||||
| Model (Hydraulic drive) | GTJZ08A | GTJZ08 | GTJZ10 | GTJZ12 | GTJZ14 |
| Maximum working height | 9.8m | 9.8m | 11.8m | 13.8m | 15.8m |
| Maximum platform height | 7.8m | 7.8m | 9.8m | 11.8m | 13.8m |
| Working platform size (length × width × height) | 2.26x0.84x1.1m | 1.29×0.7×1.05m | 2.29×1.13×1.1m | 2.23×1.13×1.1m | 2.67×1.13×1.1m |
| Wheelbase | 1.89m | 1.89m | 1.89m | 1.89m | 2.26m |
| Safe working load | 230kg | 450kg | 320kg | 320kg | 227kg |
| Lifting/driving motor | 24V/3.3kw | 24V/3.3kw | 24V/3.3kw | 24V/4.5kw | 24V/4.5kw |
| Battery | 4x6V/200ah | 4x6V/200ah | 4x6V/200ah | 4x6V/200ah | 4x6V/200ah |
| Machine weight | 2030kg | 2200kg | 2500kg | 2860kg | 2860kg |

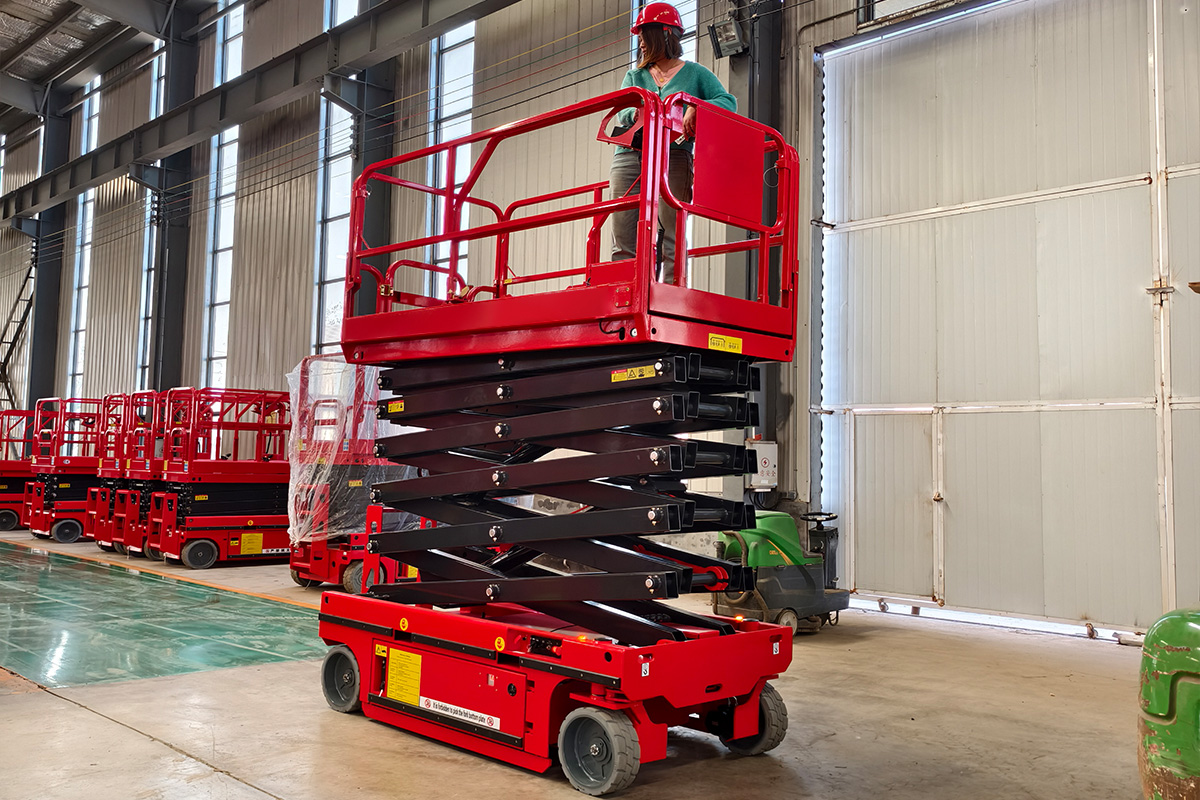

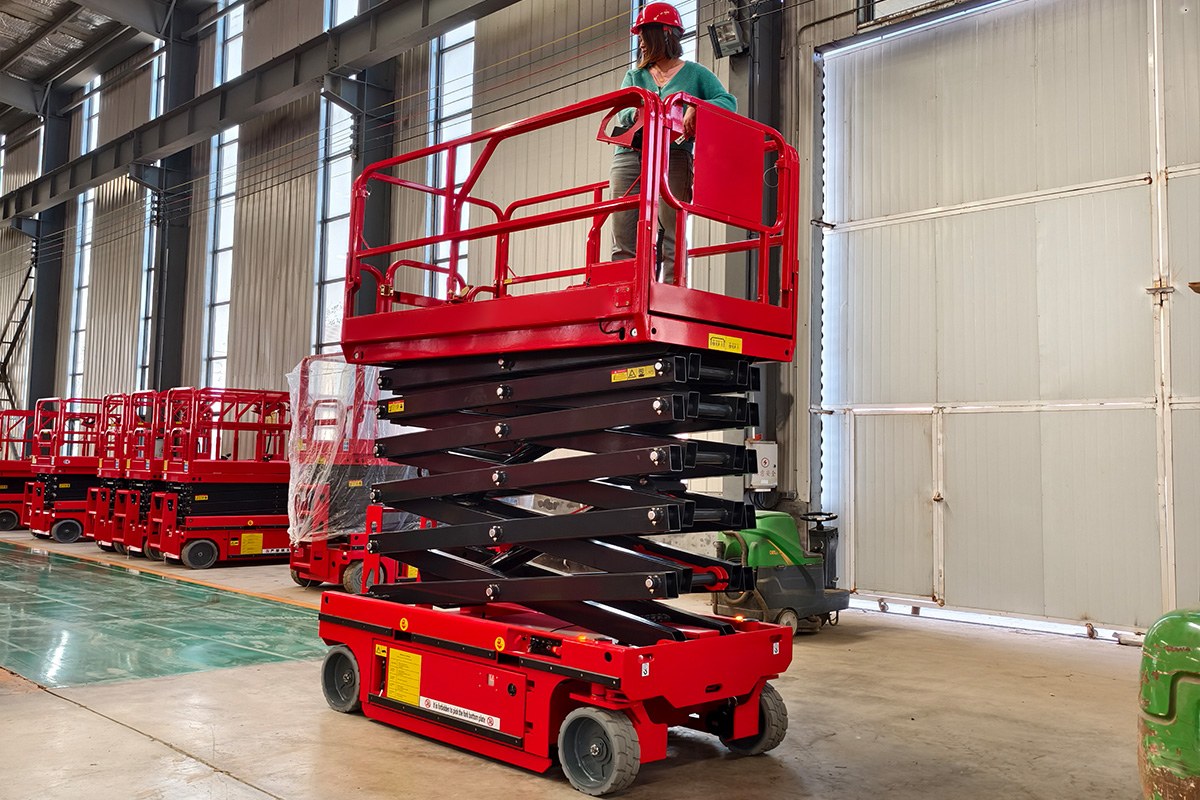

Self-Propelled Scissor Lift is a self-propelled aerial work equipment, widely used in construction, maintenance and warehousing.
1. The foot-operated extension platform can be quickly spread to the work point.
2. The foldable fence reduces the size of the whole machine.
3. It is convenient to work in a small space.
4. 25% climbing ability, can climb up the slope smoothly.
5. The rotating chassis is convenient for maintenance.
6.The fault code is automatically displayed for easy maintenance.
